Chase Single Sectional Roof Ladders
Chase Manufacturing
Price range: £210.33 through £256.79
**Polite notice: P.O.A for all Scotland deliveries please call before ordering for carriage cost**
The Chase Single Sectional Roof Ladders designed and manufactured in the UK provide the ultimate in safety on the roof.
These heavy duty ladder sections are manufactured to BSEN131 standard using industrial strength aluminium, with oval section stiles and heavy-duty non-slip rungs and incorporate a heavy-duty ridge hook. To prevent any damage to the roof they have rubber covered bearers bars to distribute weight evenly. Unlike the majority of roof ladders available these ladders are Built from materials that exceed the performance requirements of BSEN-131 Professional and are rated at 175kg.
Folding bearers
Each bearer has two holes at the ends that allow it to be fixed to the ladder. The fasteners used to be blind fastener ‘mono bolts’ we will now use hexagon head high tensile bolts with nyloc nuts. A single fixing will be made at each end of the bearer which will allow it to pivot and sit flat against the ladder stiles. To secure the bearer in position the customer will need to square it up and fit the additional two nuts and bolts.
The Chase Single section Roof Ladder designed and manufactured in the UK provide the ultimate in safety on the roof.
- Ladder sections meet the requirements of BSEN131 Standards.
- Main roof ladder section 2.4m long.
- Extension pieces with spigots joints can be added to allow you to make the ladder up to the length required-complete flexibility.
- Aluminium construction, lightweight but strong.
- Strong oval box section stiles.
- Serrated round rungs at 300mm centres.

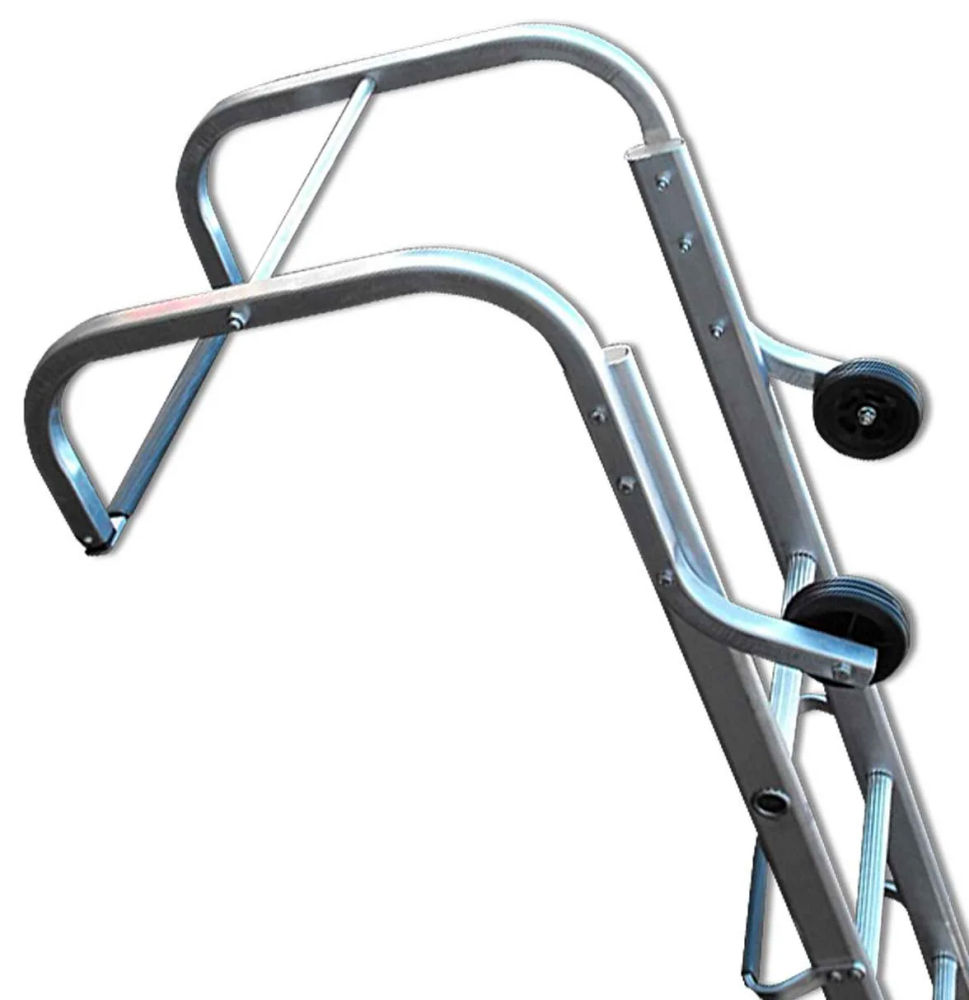

- Ridge hooks constructed from 25mm square tube with 100mm diameter running wheels.
- Bearer bars fitted with protective EPDM high grip Coverings
- Additional bearers can be fitted if required.
- 175KG maximum permissible vertical static load.
The Chase Single Sectional Roof Ladders designed and manufactured in the UK provide the ultimate in safety on the roof.
These heavy duty ladder sections are manufactured to BSEN131 standard using industrial strength aluminium, with oval section stiles and heavy-duty non-slip rungs and incorporate a heavy-duty ridge hook. To prevent any damage to the roof they have rubber covered bearers bars to distribute weight evenly. Unlike the majority of roof ladders available these ladders are Built from materials that exceed the performance requirements of BSEN-131 Professional and are rated at 175kg. Folding bearers Each bearer has two holes at the ends that allow it to be fixed to the ladder. The fasteners used to be blind fastener ‘mono bolts’ we will now use hexagon head high tensile bolts with nyloc nuts. A single fixing will be made at each end of the bearer which will allow it to pivot and sit flat against the ladder stiles. To secure the bearer in position the customer will need to square it up and fit the additional two nuts and bolts. The Chase Single section Roof Ladder designed and manufactured in the UK provide the ultimate in safety on the roof.- Ladder sections meet the requirements of BSEN131 Standards.
- Main roof ladder section 2.4m long.
- Extension pieces with spigots joints can be added to allow you to make the ladder up to the length required-complete flexibility.
- Aluminium construction, lightweight but strong.
- Strong oval box section stiles.
- Serrated round rungs at 300mm centres.
- Ridge hooks constructed from 25mm square tube with 100mm diameter running wheels.
- Bearer bars fitted with protective EPDM high grip Coverings
- Additional bearers can be fitted if required.
- 175KG maximum permissible vertical static load.
Important information
Please note: Roof hooks and bearer bars are supplied loose and the ladders jointed for ease of carriage. These require bolting together by the customer – fixings are supplied.
| Manufacturer | Chase Manufacturing |
| Material | Aluminium |
| Classification | BS EN131 |
| Safe Working Load | 175kg (27st 5lb) |
| SKU | CRL1 |
