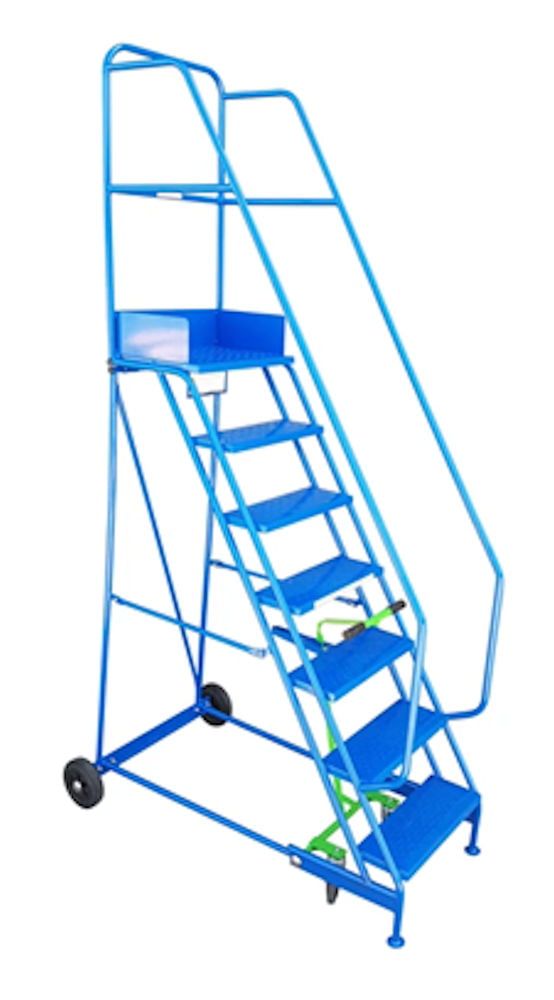

Klime ezee 7 Tread Knock Down Mobile Step
Click on the individual product in the table for a more detailed description and lead time.
The Klime Ezee Knock Down Mobile Step is based on the same design as our Industrial Range but is delivered "knocked down" for assembly on- site.
Having a Fully welded heavy duty steel construction (with the exception of the bolted bracings) these steps are suitable for all construction, retail, commercial, office and even military applications.
PLATFORM HEIGHT FROM 1250 - 3750mm
- Arrives in knock-down form
- 55 x 200mm tread width
- Central bar breaking system
- Heavy Duty Steel Construction
- Platform Size 550mm Wide x 400mm Deep.

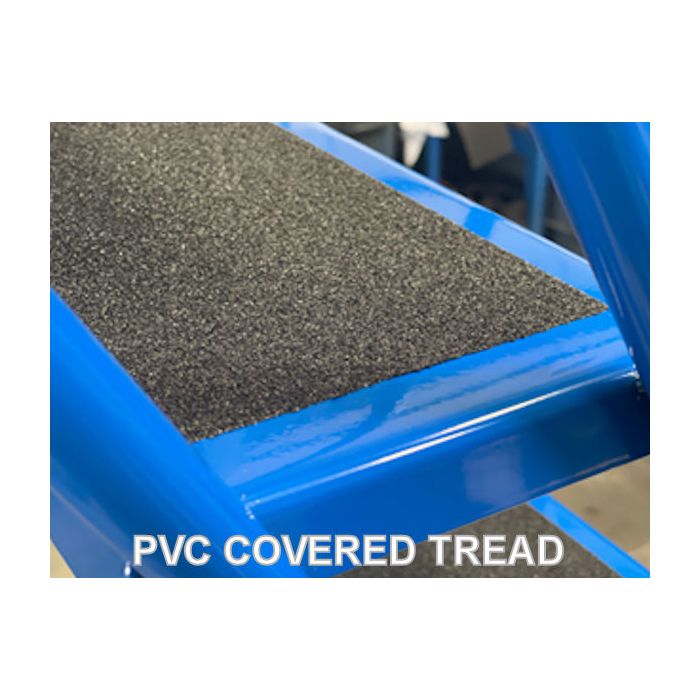

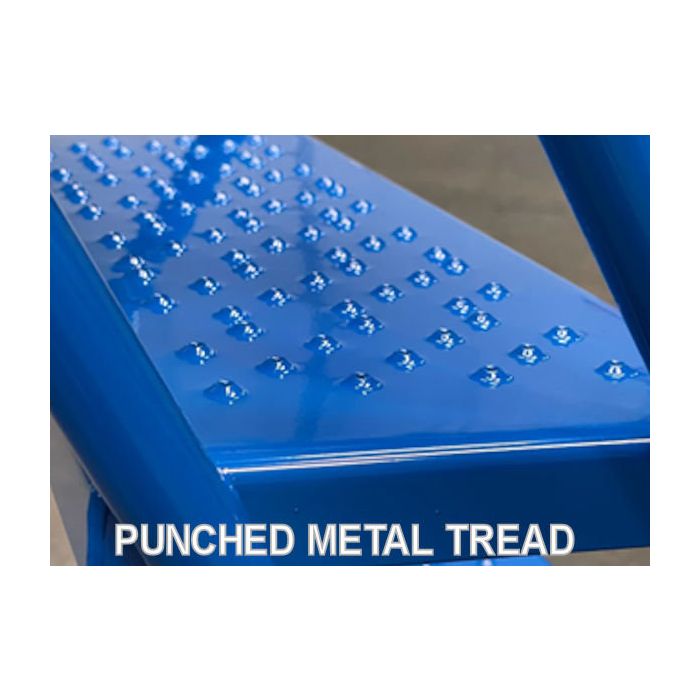

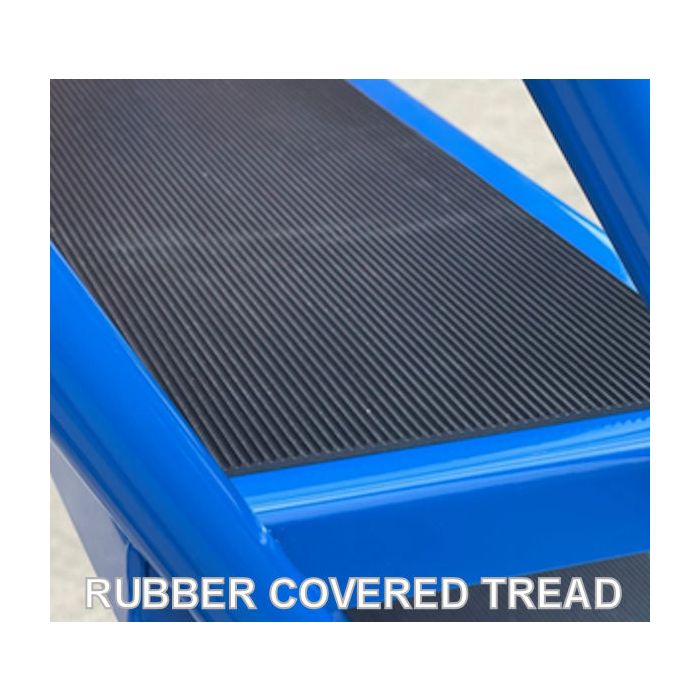

- Metal, Rubber and PVC Tread Options Available
- 300kg safe working load
- Durable powder coated finish
- Easily manoeuvrable
- From 25mm steel tube
- 7 tread models and above have 150mm high toe plate to rear and sides of platform
- The back pulpit rail on the platform is 1000mm high and 950mm high at the sides
- Has a safe working load of 300kg
Wheels and Castors
- 2 Tread steps - are manufactured with 4 plunger castors
- 3-6 Tread steps - are manufactured with large castors at 125mm and small wheels at 160mm
- 7-15 Traed steps - are manufactured with large castors at 125mm and large wheels at 200mm
- 2 Tread steps - have 4 plunger castors
- 3 Tread steps - have a side hand braking system
- 4 Tread steps and above - have central bar braking system
Comes in Blue with a Green handled braking system with another option of having Red with a Yellow handled braking system.
The powder coated finish is not only scratch resistant but also has UV properties; providing a longer life span, which is also suitable for outdoor use.
|Number of Treads||7 Tread|
|Maximum Working Height||3.5m|
|Height Of Handrail||m at the Back of the Platform and 0.95m high at the sides|
|Tread Size||0.55m x 0.2m|
|Platfom Size||0.55m x 0.4m|
|Overall Dimensions H x W x L||2.75m x 0.85m x 1.45m|
|Closed Dimensions H x W x L||0.9m x 0.85m x 3m|
|Breaking System Supplied?||Central Lever Brake|
|Type Of Treads||Choice of Metal, Rubber or PVC treads|
|Colours Available||Available in Blue, Red, Yellow, Green, Grey or Orange|
|Classification||No Standard for this category|
|Recommended Use||Suitable for all construction, retail, commercial, office and even military applications.|
|Safe Working Load||300kg (47st 2lb)|
|Guarantee||5 Year Manufacturers Guarantee|
|Important Information||PLEASE MAKE SURE SIZES ARE CORRECT BEFORE ORDERING AS MADE TO ORDER PRODUCTS ARE NON-RETURNABLE AND NON-REFUNDABLE.|
